1. Automatic vacuum type packing series, can satisfy all sorts of function and material.

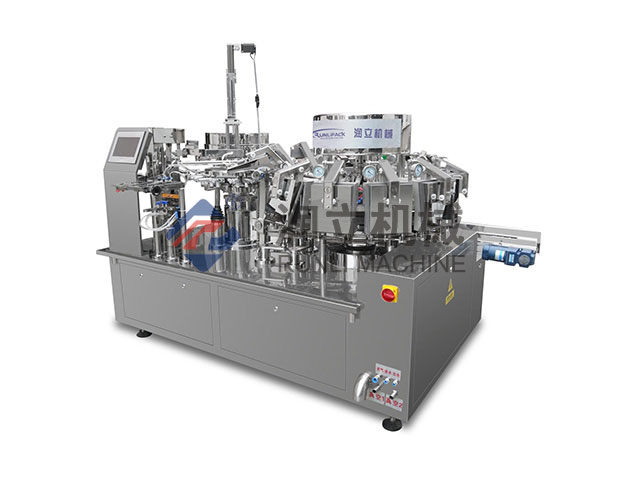

2. Rotary automatic vacuum type packing machine is composed of two separate rotary body (filling system and vacuum system, respectively). Filling system for intermittent rotation, vacuum system for the continuous rotary motion.
3. Quick change packaging specifications, automatically to the width of the bag device can automatic one-off adjustment.
4. Conform to the hygiene standards of food processing machinery, machine and material or packaging contact parts adopt stainless steel or other materials processing under the food hygienic requirements, to ensure the health and safety of food.
5. Clean and convenient, indoor vacuum cleaning
6. Packaging material loss is low, the machine use is preformed bags, packaging design is exquisite, the sealing of good quality and to improve the grade of the product. No fewer than expected not sealing, reusable bag. Don��t waste bag.
7. Easy to operate, PLC and POD (touch screen) electric control system, friendly man-machine interface, easy to operate. Can automatically adjust the Angle of the pneumatic components and time.
8. The sealing temperature monitoring function, if the heating tube electric or accidentally damaged, the alarm will be displayed in the touch screen.
9. External vacuum pump
10. Air must also offers
|
Equipment model |
RL-GD-ZK130S |
RL-GD-ZK160S |
RL-GD-ZK200S |
|
Equipment material |
304 stainless steel | ||
| Vacuum pump |
Germany puxu 63 pump / 2kW Shanghai Zhongde 63 pump / 1.5KW (optional) |
||
| Pneumatic components | SMC of Japan (standard parts), adek of Taiwan (non-standard parts) | ||
| Driving mode | Motor drive (cam gear lever full mechanical mode) | ||
|
Measurement method |
Automatic and manual integrated machine | ||
| Applicable materials | It is widely used for dried beans, shredded mustard, sauerkraut, sour beans, dried tea, large dried beans, fried chicken, spicy chicken, marinated eggs, three section wings and other irregular materials, bean products and pickles | ||
|
Workflow
|
1. Loading bag 2. Opening bag 3. Blanking 4. Adding liquid 5. Reserving 6. Reserving 7. Crossing bag 8. Reserving → (vacuum) 1. Tape connection 2. Cover closing 3. Primary vacuum 4. Secondary vacuum 5. Tertiary vacuum 6. Fourth vacuum 7; Seal 8. Seal cold cut 9. Deflate 10. Open the cover and take out the bag |
||
|
Sealing style
|
The seal is heated instantly and cold cut instantly after the seal is set to ensure beautiful seal | ||
|
Packaging speed
|
35-60 bales / min (the speed is determined by the product characteristics) | ||
| Packaging materials | Aluminum foil bags, paper bags, nylon bags and other plastic bags | ||
| Package specification |
W：50mm-130mm L：80mm-200mm |
W：80mm-160mm L：80mm-210mm |
W:130-200mm L:≤300mm |
|
Total power
|
Main engine power 5.5kw | ||
|
Driving power supply
|
Three phase 380V, 50Hz | ||
|
Machine shape
|
2100mmx1400mmmx1600mm (L * w * h) without hoist | 2420*1700*1800（L*W*H） | |
|
Main engine weight |
2.2T | ||
|
Use environment |
Room temperature 10-40 ℃, 30-90% RH, no dew, no corrosive gas, no dust and other harsh environment | ||
