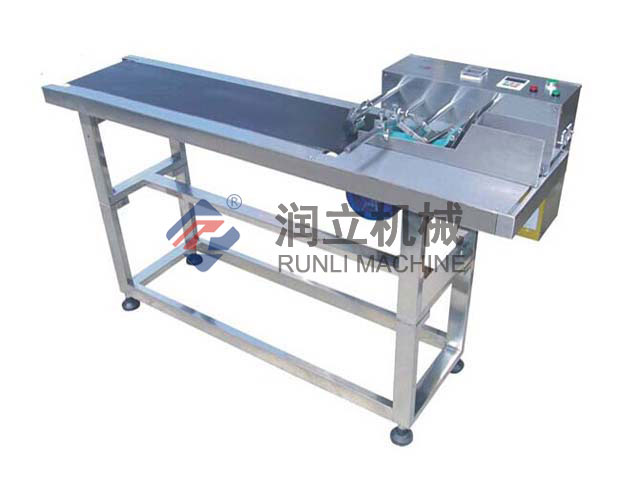

< strong > rl-300 series high-speed automatic sorting machine (friction type) < / strong > is used to automatically separate the stacked packaging bags or cards, separate them into a single and transfer them to the conveyor belt, which is convenient for inkjet printer or laser machine to print, print production date, batch number, anti-counterfeiting mark, pattern, etc. So as to reduce the tedious manual pagination, give full play to the advantages of inkjet printer and laser printer, and improve the efficiency of inkjet printing. The machine body is made of stainless steel, using imported high-precision inverter with Shanghai motor, with high stability, convenient production management, widely used in medicine, cosmetics, food and other industries of inkjet and inkjet printing< br />
Characteristics: < br / >
1. High speed of paging: high precision variable frequency stepless speed regulation, high speed automatic paging 10-500 / min, can greatly improve the production efficiency< br />
2. The structure design is reasonable, the replacement of vulnerable parts is simple and fast, and the maintenance cost can be reduced< br />
3. Optional accessories: automatic receiving device, separate counting and stop signal source of paging machine
Technical parameters:
Automatic paging speed
|
60-500 pieces / M
|
Rated voltage
|
220V/50Hz
|
Total power
|
250W
|
Weight
|
100Kg
|
External dimension
|
one thousand and five hundred × six hundred × 950 (mm) (L x W x H)
|
Belt width
|
300 (mm)
|
Applicable product range
|
Length 65-500 (mm) adjustable
|
Thickness 0.2 adjustable, width
|
70-320 (mm) adjustable
|
(can be customized according to requirements)
